Benefits

Low post Detonation fumes.

Excellent water resistance.

Easy handling and loading of holes.

Saves valuable time and manpower.

High VOD for better fragmentation.

Enhanced safety against impact and friction.

Product made to suit strata.

BENEFITS

High Accuracy.

Programmable at Site.

Enhanced Safety.

The Electric Seismic detonator is an initiator system of explosive charge that can convert an electric into a detonation.

The special configuration of the metallic filament used to manufacture the Seismic Electric Detonator results in low resistance which assures effective high initiation energy. The property of the filament makes it safer in terms of its functionality when compared to other detonators available in the market.

The electric detonator has an electro-pyrotechnical element that can react in less than 1.0 millisecond between the moment required current is applied and detonation takes place. The electro-pyrotechnical element is hosted in an antistatic device. The interior design of the detonator that includes the insensitive electro-pyrotechnical set and the antistatic plug was specially developed to prevent accidental detonation associated with static or erratic electricity.

The Aluminium detonator shell contains a base charge of PETN and Primary Charge of Lead Azide, Lead Styphnate & Aluminium powder. The total amount of explosives in the detonator including primary charge is less than 1 g.

Product would be with copper wire of 0.6 mm diametre. The insulation over copper wire is PE. Lead wire colour can be given any colour preferred by the client.

The Aluminium Instantaneous Electric Detonator is an initiating system of explosives charge that can convert an electric impulse into a detonation. The Aluminium detonator shell contains a base charge of PETN and Primary Charge of Lead Azide, Lead Styphnate & Aluminium powder.

The Aluminium Instantaneous Electric Detonator is designed to provide instantaneous detonation of explosive or detonating cord in quarries, surface operations, open pit mines and construction projects.

ADVANTAGES

Always use shot source that can provide a current flow greater than 1.2 Amps.

Never handle or use electric detonators in the presence of static or erratic electricity or electric storm.

Open the shorted ends of lead wire only to verify the continuity and initiate the blasting.

Never connect Supreme AED to other electric detonators with different sensitivity or blasting characteristics.

Do not use in gassy environments.

The Aluminium Short Delay Detonator and Aluminium Long Delay Detonator has strength 8 for safe ignition of sensitive explosives and primers. The detonators have primary charge of Lead Azide & Aluminium Powder and base charge of PETN. The detonation is pyrotechnically delayed at a predetermined time after the firing pulse is applied.

30 intervals for ASDD and 15 intervals for ALDD are provided for flexibility in choice of firing sequence. The Aluminium Short Delay Detonator and Aluminium Long Delay Detonator are designed to provide detonation sequence for explosive in quarries, surface operations, open pit mines and construction projects.

ADVANTAGES

Provides precise control necessary to produce accurate and consistent blasting results.

Reliably initiates all cap sensitive products.

Reduces possibility of any mechanical damages or water hammer effect.

Wide range of delay intervals give greater flexibility in blast design to control vibration, frequencies and better fragmentation with no overlap.

Excellent water resistance.

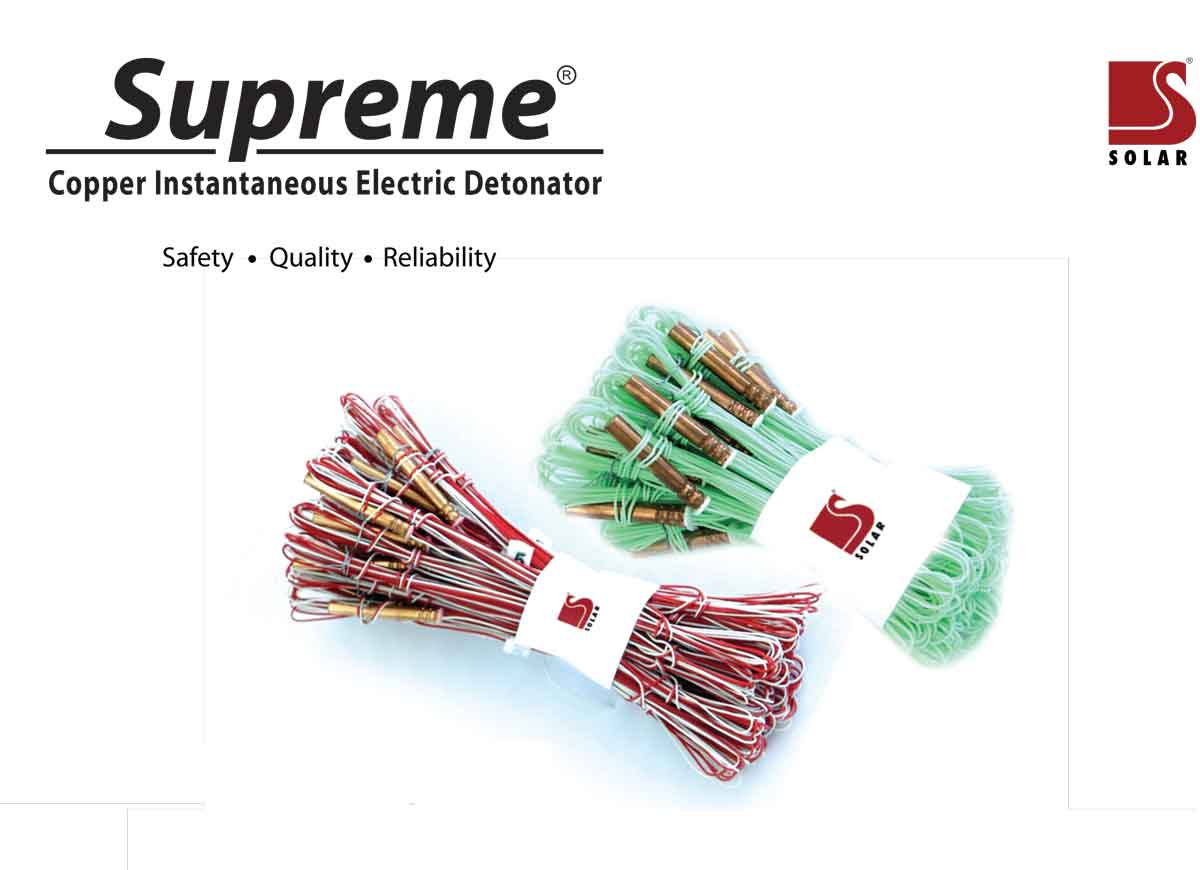

Supreme Copper Electric detonators meant for use in underground coal mines.

Supreme CED and Supreme CSDD detonators have primary charge of Lead Azide / Lead Styphnate in case of CED and Lead Azide / Aluminium Powder in case of CSDD, and base charge in both is PETN. In CSDD, the detonation is pyrotechnically delayed at a predetermined time after the firing pulse is applied.

Supreme CSDD provide delay flexibility in short period blast design, the accurate delay timing allows for a wider variety of blast design possibilities.

ADVANTAGES

Provides precise control necessary to produce accurate and consistent blasting results.

Reliably initiates all cap sensitive products.

Reduces possibility of any mechanical damages or water hammer effect.

Wide range of delay intervals give greater flexibility in blast design to control vibration, frequencies and better fragmentation with no overlap.

Excellent water resistance.

Easy to handle and excellent storage characteristics.

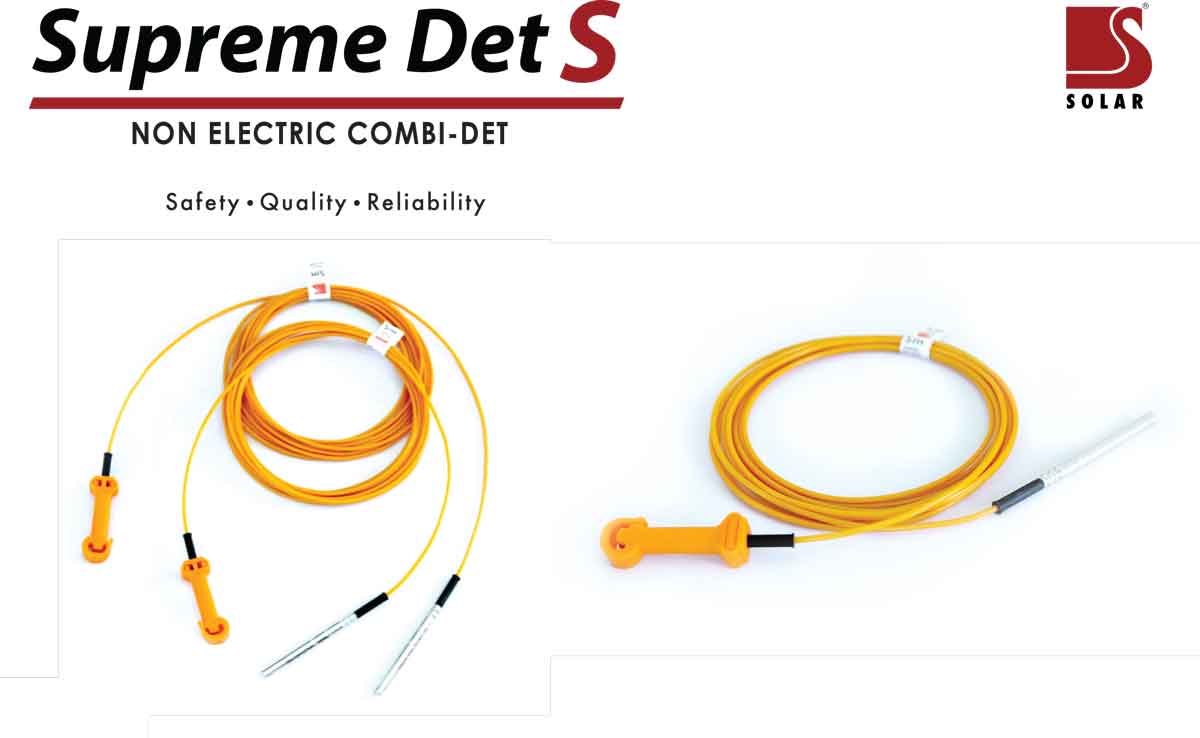

SUPREME DET-S Combidet detonator are signal tube based detonator, combining In-hole delay with a Surface delay detonator. It consists of 3-Layered shocktube, having internal coating of HMX compound & delay detonator crimped to each end which provides non-electric delay initiation of surface and underground blast patterns.

The SUPREME DET-S Combidet detonator is developed to be used in a wide range of temperature conditions. The product may be used in areas encountering high temperatures and cold conditions.

Avoid damage to the shock tube. Do not use shock tube as a lowering line for any thing other than cast booster. Never pull so hard to stretch or break shock tube which may cause a premature detonation.

ADVANTAGES

Reliably initiates all detonator sensitive explosives, does not affect the explosives column energy.

Stands up to tough conditions.

Provide flexibility in blast control.

Allows easy connection.

Does not entangle – no waste.

They work as a single unit, simplifying priming and loading of surface and underground rounds.

Rugged and abrasion resistance tubing.

Delay Periods are accurately timed.

Quick and simple to connect.

Brightly coloured components.

High visibility.

Environment friendly; Reduced energy loss.

SUPREME DET-S Surface Detonator is a non-electric surface delay unit consisting of low energy millisecond delay detonator housed in plastic connector block.

SUPREME DET-S Surface Detonator is designed to provide surface delay in a non-electric blast pattern in quarries, surface coal operations, open pit mines and construction projects. These are used in conjunction with detonating cord down lines or other non-electric delay systems to provide flexibility in blast design and ease of use.

The SUPREME DET-S Surface Detonator is developed to be used in a wide range of temperature conditions.

ADVANTAGES

Eliminate need for detonating cord trunk lines.

Provide excellent, flexible blast control.

Allows easy connection even with gloves.

Easy and Quick Blast plan modifications.

Facilitates rapid hook up verification.

Rugged and heavy duty abrasion resistant tubing.

Low Noise and controls ground vibrations.

SUPREME DET-S Short Period Detonator assemblies provide short delay, non-electric initiation of underground blast patterns. Used in conjunction with detonating cord trunk lines, SUPREME DET-S Short Period Detonator in 20 delay periods, provide flexibility in blast design and ease of use. These can be used in surface or underground mines, at quarries or at construction projects.

ADVANTAGES

Reliably initiates all detonator sensitive explosives; does not cause desensitisation of explosives column.

Stands up to tough conditions.

Provide flexible blast control.

Allows easy connection.

Does not entangle.

Rugged with abrasion resistance tubing.

Accurately timed in 20 delay periods.

Quick and simple to connect.

Highly visible.

Environment friendly.

Quick and simple to connect.

Brightly coloured components.

-SUPREME DET-S Long Period Detonator assemblies provide Long delay, non-electric initiation of underground blast patterns. Used in conjunction with detonating cord trunlines, SUPREME DET-S Long Period Detonator in 18 delay periods, provide flexibility in blast design and ease of use. These can be used in surface or underground mines, at quarries or at construction projects.

ADVANTAGES

Reliably initiates all detonator sensitive explosives; does not cause desensitisation of explosives column.

Stands up to tough conditions.

Provide flexibility in blast control.

Allows easy connection.

Does not entangle.

Rugged with abrasion resistance tubing.

Accurately timed in 18 delay periods.

Quick and simple to connect.

High visibility.

Environment friendly.

Quick and simple to connect.

Brightly coloured components.
